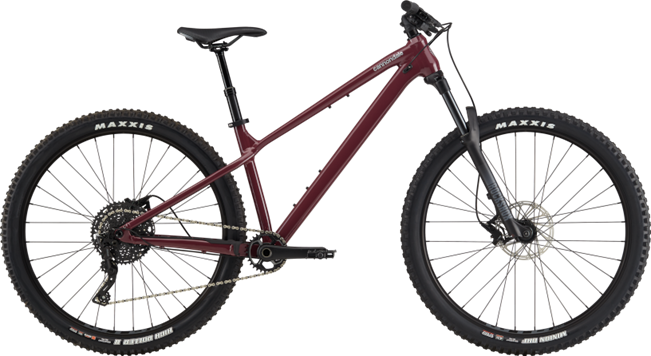

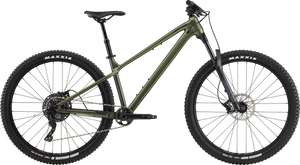

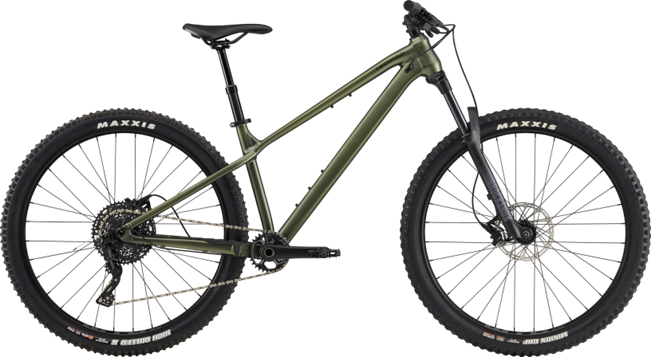

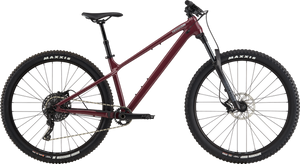

2023 Habit HT 2

Details

• Platform

  Habit HT
• Model Name

  Habit HT 2
• Model Code

  C26202U

Frameset

• Frame

  Habit HT, SmartForm C2 Alloy, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA 73, 12mm thru axle, Boost 148, 55mm chainline, UDH hanger
• Fork

  RockShox Judy TK, 130mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
• Headset

  Integrated Sealed Bearing, Tapered

Drivetrain

• Rear Derailleur

  microSHIFT Advent X Pro
• Shifters

  microSHIFT Advent X Pro, 10-speed
• Chain

  KMC X10, 10-speed
• Crank

  Prowheel, 30T, 55mm chainline
• Rear Cogs

  microSHIFT Advent X Pro, 11-48, 10-speed
• Bottom Bracket

  ProWheel BSA 73

Brakes

• Brakes

  SRAM Level hydraulic disc 180/180mm CenterLine Rotors
• Brake Levers

  SRAM Level hydraulic disc

Wheels

• Rims

  WTB STX i30 TCS, 32h, tubeless ready
• Spokes

  Stainless Steel, 14g
• Tires

  (F) WTB Vigilante, 29x2.5" (R) WTB Vigilante, 29x2.4"
• Tire Size

  2.5
• Wheel Size

  29
• Hubs

  (F) Formula alloy, 15x110mm thru-axle / (R) Formula alloy 12x148mm thru-axle
• Front Tire

  WTB Vigilante, 29x2.5", tubeless ready
• Rear Tire

  WTB Vigilante, 29x2.4", tubeless ready

Components

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 0°
• Grips

  Cannondale TrailShroom
• Saddle

  Cannondale Ergo XC
• Seatpost

  TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)
