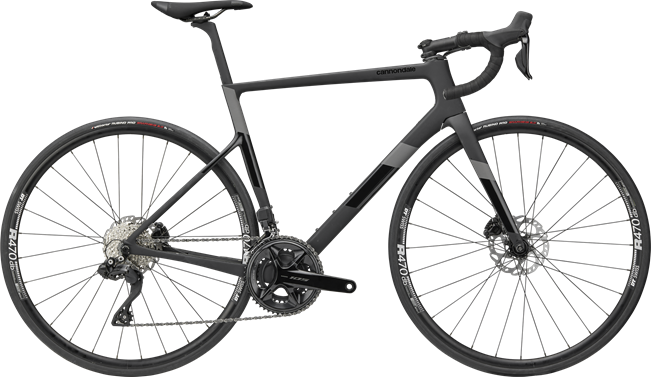

2023 Supersix EVO Carbon Disc 105 Di2

Details

• Platform

  SuperSix EVO
• Model Name

  SuperSix EVO Carbon Disc 105 Di2
• Model Code

  C11702M

Frameset

• Frame

  SuperSix Evo Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
• Fork

  SuperSix Evo Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
• Headset

  Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)

Drivetrain

• Rear Derailleur

  Shimano 105 Di2 7150
• Front Derailleur

  Shimano 105 Di2 7150, braze-on
• Shifters

  Shimano 105 Di2 7170, hydraulic disc, 12-speed
• Chain

  Shimano 105 7100, 12-speed
• Crank

  Shimano 105 7100, BSA, 50/34
• Rear Cogs

  Shimano 105 7100, 12-speed, 11-34
• Bottom Bracket

  FSA PF30a BB for 24mm

Brakes

• Brakes

  Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
• Brake Levers

  Shimano 105 Di2 7170 hydraulic disc

Wheels

• Rims

  DT Swiss R470 db, 28h, Tubeless compatible
• Spokes

  Stainless Steel, 14g
• Tires

  Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip
• Tire Size

  25
• Wheel Size

  700
• Hubs

  (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock

Components

• Handlebar

  Cannondale 3, butted 6061 Alloy, 16 deg flare drop
• Stem

  Cannondale 2, 6061 Alloy, 31.8, 7°
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Prologo Nago RS STN
• Seatpost

  HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
