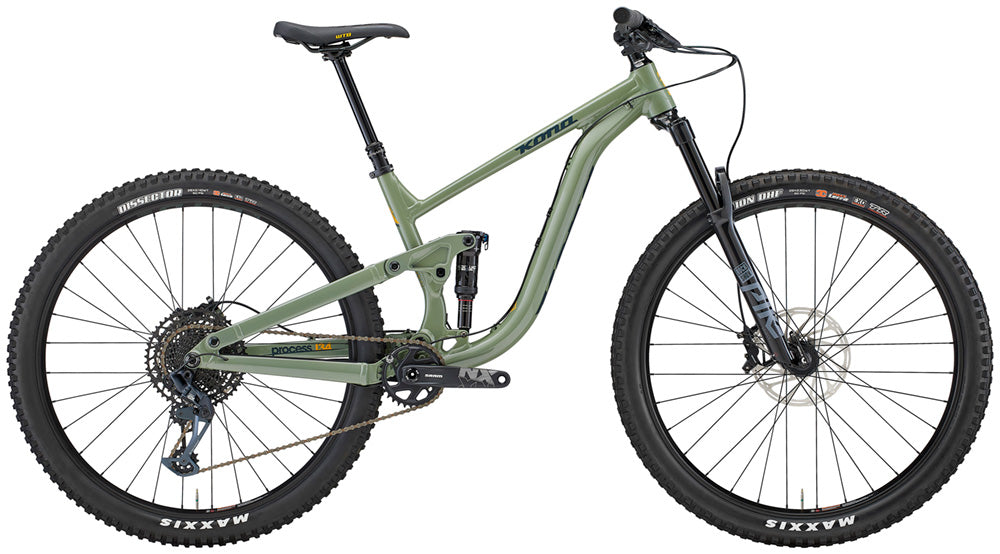

2023 Process 134 DL 29

$3,999.00

| /

Size
Color
Green

You want a nice bike, but you’ve been hesitating to pull the trigger.
What’s the right amount of travel? How can you be sure you’re getting
great value? How do you know this bike is the only bike you’ll need?
Because you gotta trust the Process, that’s why. The Process 134 DL 29
is thoughtfully put together to ensure every box is checked. Big wheels
to help roll over rough terrain plus a spec that puts the money where it
matters: suspension, brakes, and drivetrain. It’s perfection in a bike.


SPECS

Frame Material Kona 6061 Aluminum Butted 134mm Travel
Sizes S, M, L, XL
Rear Shock RockShox Deluxe Ultimate Trunnion
Fork RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
Crankarms SRAM NX Eagle DUB
Chainrings 32t X-Sync Eagle
B/B SRAM DUB PF92
Pedals n/a
Chain SRAM SX-Eagle
Cassette SRAM NX-Eagle 11-50t 12spd
Chainguide n/a
F/D n/a
R/D SRAM GX-Eagle
Shifters SRAM NX-Eagle
Brake Calipers SRAM G2 RS
Front Brake Rotor SRAM Centerline 200mm
Rear Brake Rotor SRAM Centerline 180mm
Brake Levers SRAM G2 RS
Headset FSA Orbit 1.5 EP ZS
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35
Seatpost TranzX Dropper +RAD Internal 31.6mm
Seat Clamp Kona Clamp
Grips Kona Key Grip
Saddle WTB Volt
Front Hub Formula 110x15mm
Rear Hub Formula 148x12mm
Spokes Stainless Black 14g
Rims WTB KOM Team i30 TCS
Front Tire Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear Tire Maxxis Dissector EXO TR 3C 29x2.4" WT
Paint Color Gloss Metallic Green w/ Matte Black Forest & Indicator Yellow Decals
Extras n/a



GEOMETRY

  SIZE S M L XL
1 STL 385 410 450 485
2 TTL 569 596 625 664
3 REACH 425 450 475 510
4 STACK 601 605 615 625
5 SO 715 725 725 725
6 HTA 66 66 66 66
7 HTL 93 98 109 120
8 STA 76.5 76.5 76.3 76.2
9 CSL 427 427 427 427
10 BBD 33 33 33 33
11 BBH 342 342 342 342
12 WB 1159 1186 1216 1255
13 FC 734 761 791 830
14 FL 551 551 551 551
15 OF 51 51 51 51
