2023 Dew-E DL

$4,199.00

| /

Size
Color
Blue

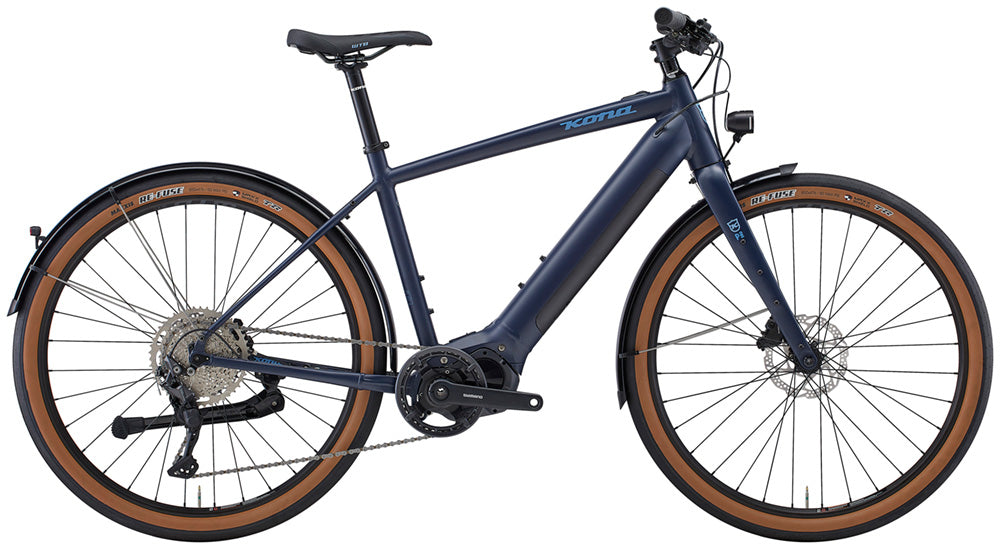

Commuters have been flocking to the Dew-E DL for its stylish design and
because it’s a blast to ride. An aluminum frame features a Kona Rove
Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in
perfect harmony with the low-profile Shimano motor and integrated
battery. Sturdy aluminum fenders and lights keep you dry and visible
throughout your ride. Powerful hydraulic disc brakes and 160mm rotors
stop on a dime, even in wet conditions and puncture-resistant 650x47c
tires keep the road rolling by smoothly whether you’re cruising on
pavement, or a dirt path. This is the electric commuter you’ve been
searching for!

SPECS

Frame Material Kona 6061 Aluminum Butted
Sizes S, M, L, XL
Rear Shock n/a
Fork Kona Rove Verso Full Carbon Flat Mount Disc
Crankarms Shimano E6100
Chainrings 38t
B/B n/a
Pedals n/a
Chain Shimano HG54
Cassette Shimano Deore 11-46t 10spd
Chainguide n/a
F/D n/a
R/D Shimano Deore
Shifters Shimano Deore
Brake Calipers Shimano Hydraulic
Front Brake Rotor Shimano RT54 160mm (centerlock)
Rear Brake Rotor Shimano RT54 160mm (centerlock)
Brake Levers Shimano MT201 Hydraulic
Headset FSA No.57BP
Handlebar Kona Aluminum Riser
Stem Kona Control
Seatpost Kona Commuter 31.6mm
Seat Clamp Kona Clamp
Grips Kona Key Grip
Saddle WTB Volt
Front Hub Shimano Tiagra 100x12mm
Rear Hub Shimano Tiagra 142x12mm
Spokes Stainless 14g
Rims WTB ST i23 TCS 2.0
Front Tire WTB Horizon TCS w/ Puncture Protection 650x47c
Rear Tire WTB Horizon TCS w/ Puncture Protection 650x47c
Drive Unit Shimano E6100 20MPH
Battery Shimano 504Wh
Display Shimano SC-E7000 Display
Charger Shimano STEPS 2A
Battery Lock n/a
Paint Color Matte Midnight w/ Blue-Grey Decals
Extras Fenders, Busch & Müller Front & Rear Light, Kickstand



GEOMETRY

  SIZE S M L XL
1 STL 420 470 520 580
2 TTL 551 596 635 678
3 REACH 404 430 446 471
4 STACK 548 579 617 636
5 SO 700 741 786 830
6 HTA 70.0 70.0 70.0 70.0
7 HTL 135 168 208 228
8 STA 75.0 74.0 73.0 72.0
9 CSL 450 450 450 450
10 BBD 60 60 60 60
11 BBH 282 282 282 282
12 WB 1081 1118 1148 1180
13 FC 638 675 705 736
14 FL 400 400 400 400
15 OF 50 50 50 50
