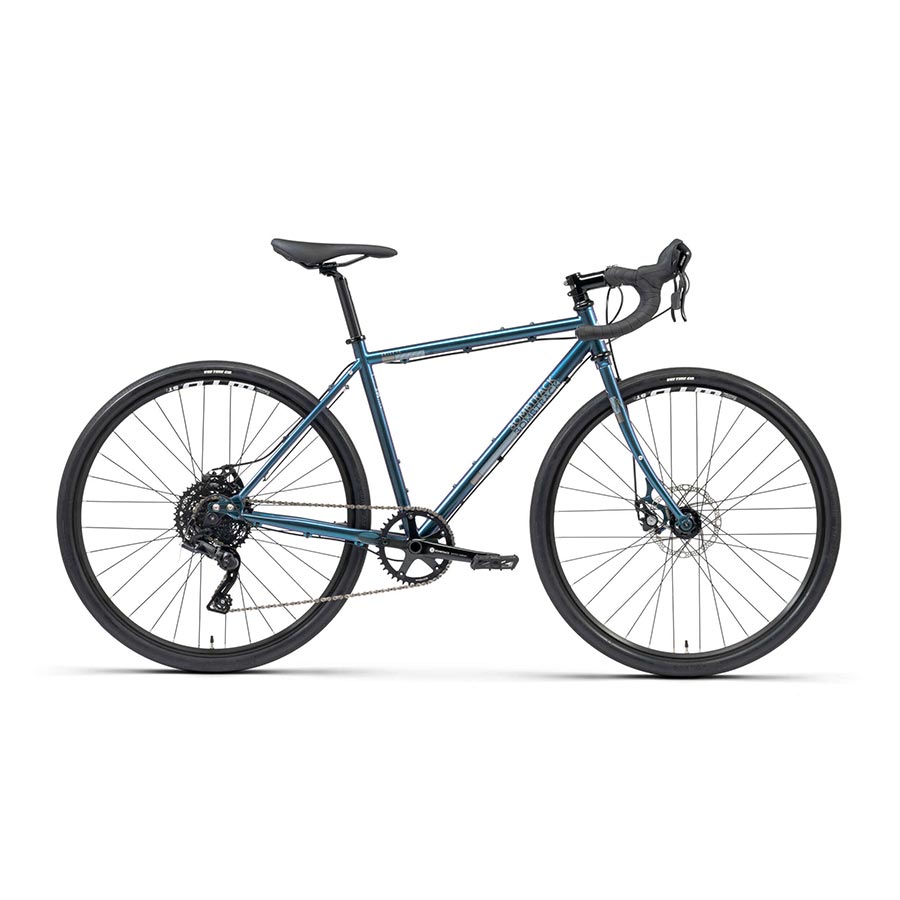

ARISE SG The latest addition to the Bombtrack fleet arrives in the form of the Arise SG. New for 2022, this bike is fitted with drop bars to give you a racier feel over its flat bar brethren, the Arise Geared. A Microshift Advent X clutched rear derailleur, and 1x drive train to keep everything stable while giving you that extra cog in the rear. Size-matched wheels ensure the perfect fit, coming fitted with 650B wheels for sizes XS and S or 700C for M and above. Sticking true to its racier nature, the Arise SG is equipped with WTB tubeless-ready wheels that are good to go if you decide to pin on a race number, whilst internal light cable routing in the fork retains the bike’s versatility.
WHEELS Size XS and S will come with 650B wheels to ensure a proper fit without any compromises in geometry.
FRAME Double-butted CrMo frame with sliding dropouts and internal light cable routing.
FORK CrMo fork with internal light cable routing.
HUBS Bombtrack ARC disc brake hubs with 12 mm through axles.
CRANK Bombtrack TAF19 aluminum crank with 24 mm spindle.
COCKPIT New Microshift Advent X 1x10 dropbar dual control levers.
DERAILLEUR Microshift Advent X clutched rear derailleur with wide range 10-speed 11-48 T cassette.
Frame: 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork: 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
Handlebar: BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Levers/ shifters: MICROSHIFT ADVENT X SB-M100dual control lever mechanic, MICROSHIFT ADVENT X SB-M100 dual control lever 1 x 10
Brakes: TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Crankset: BOMBTRACK TAF19 aluminium crank, 24 mm spindle
Cassette: MICROSHIFT ADVENT X CS-H104 10-speed, 11 - 48 T
Deraileur: Microshift ADVENT RD-M6205GM wide range, clutch
Hubs: Bombtrack ARC sealed hubs, 11 speed, 6-bolt disc
Rims: WTB ST i19 double wall, TCS 2.0, 32h
Tires: XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622
Weight: 12 kg
